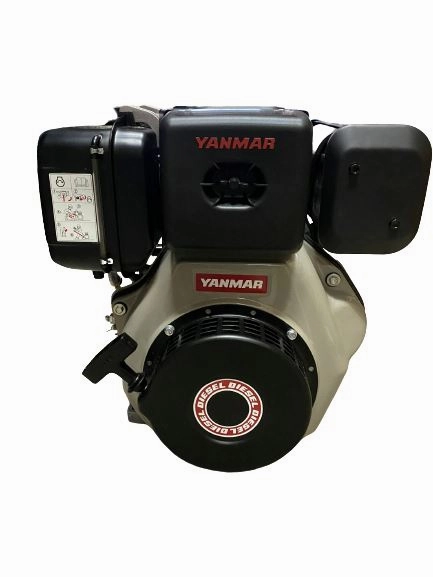

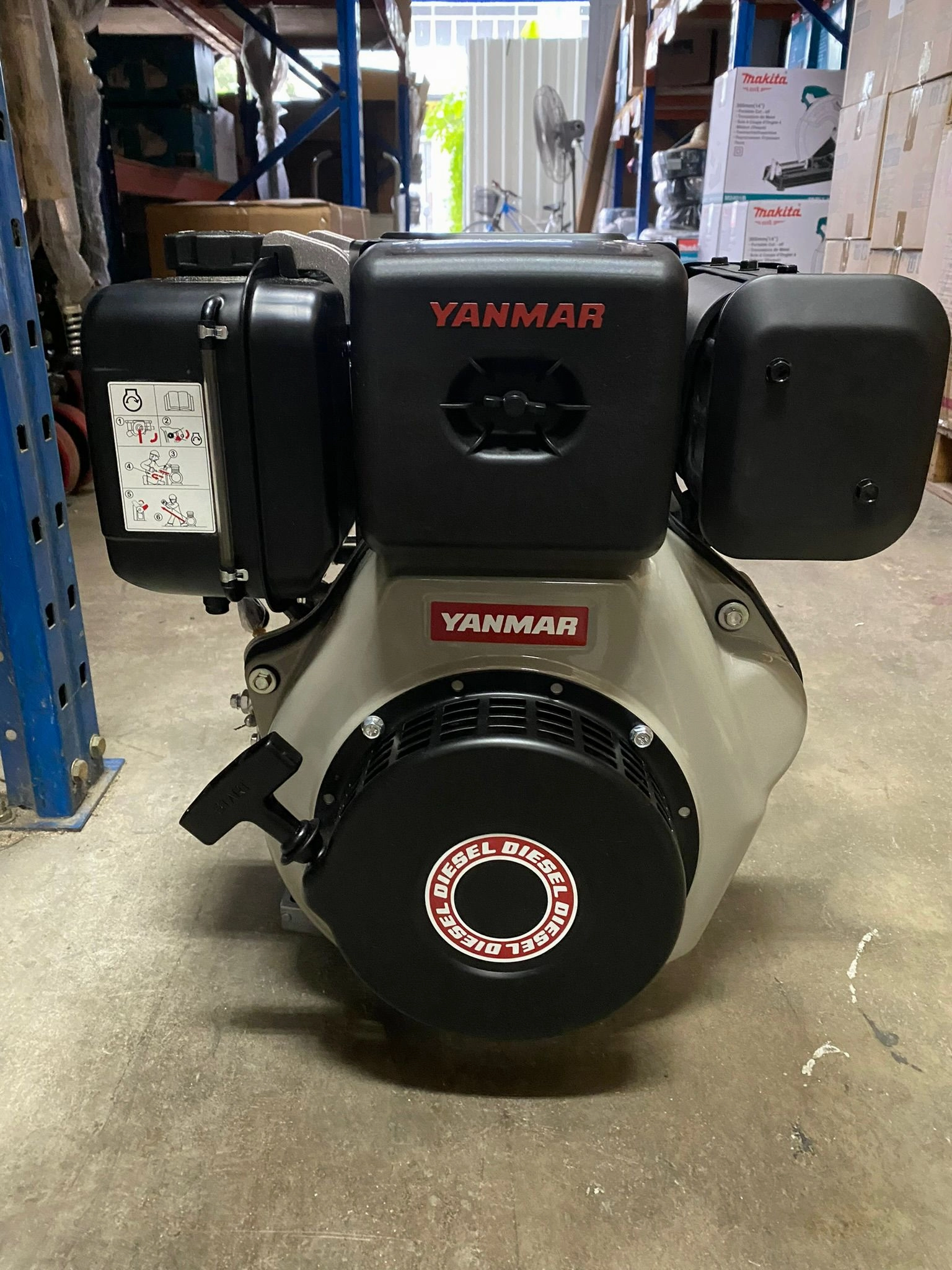

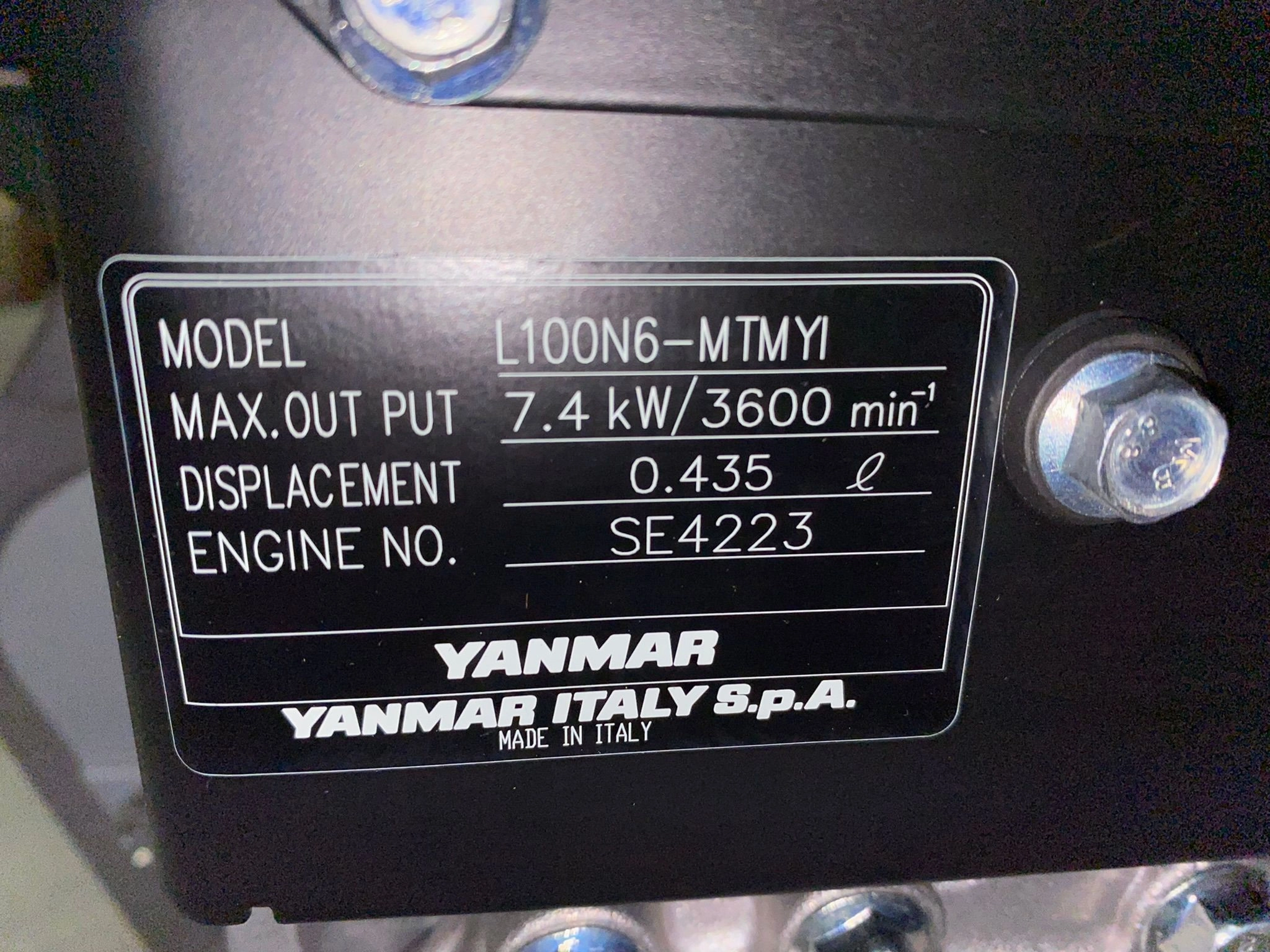

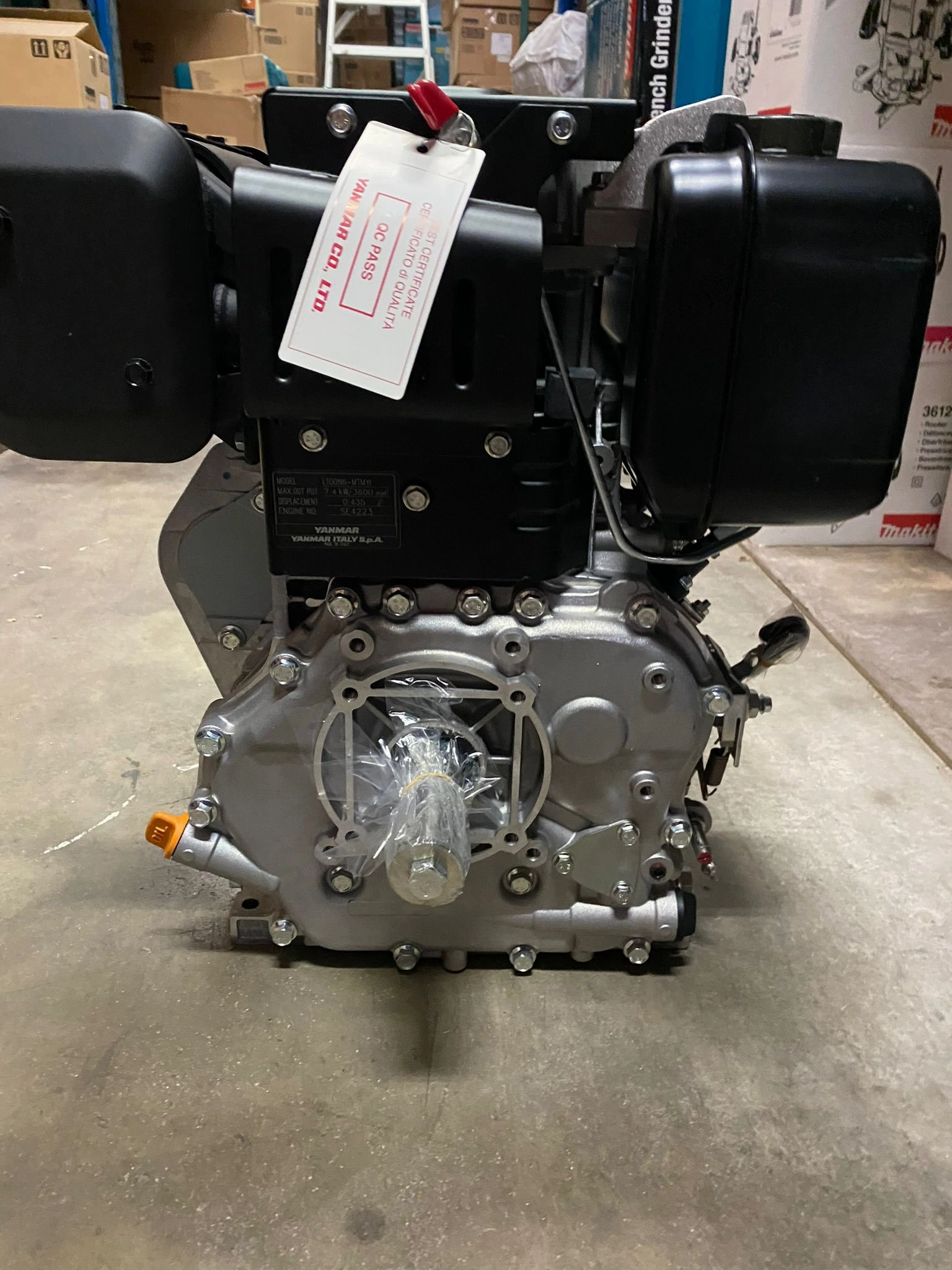

Yanmar L100 4Stroke , 7.4kW Engine (Manual) | Model : L100N6-MTM

Specifications :

• Engine Model : L100N
• Type : 4 Stroke , Vertical Cylinder , Air Cooled Diesel Engine
• No. of Cylinders : 1
• Bore X Stroke : 86 x 75 mm
• Displacement : 0.435L
• Continuous Rated Output :
• 3600 rpm(Min-1)
• 6.6 kW
• 9.0 PS
• Max Rated Output :
• 3600 rpm(Min-1)
• 7.4 kW
• 10 PS
• High Lding : 3800 ±30
• Engine Weight : 53.5 kg
• Cooling System : Forced Air by Flywheel Fan
• Lubricating System : Forced Lubrication with Trochoid Pump

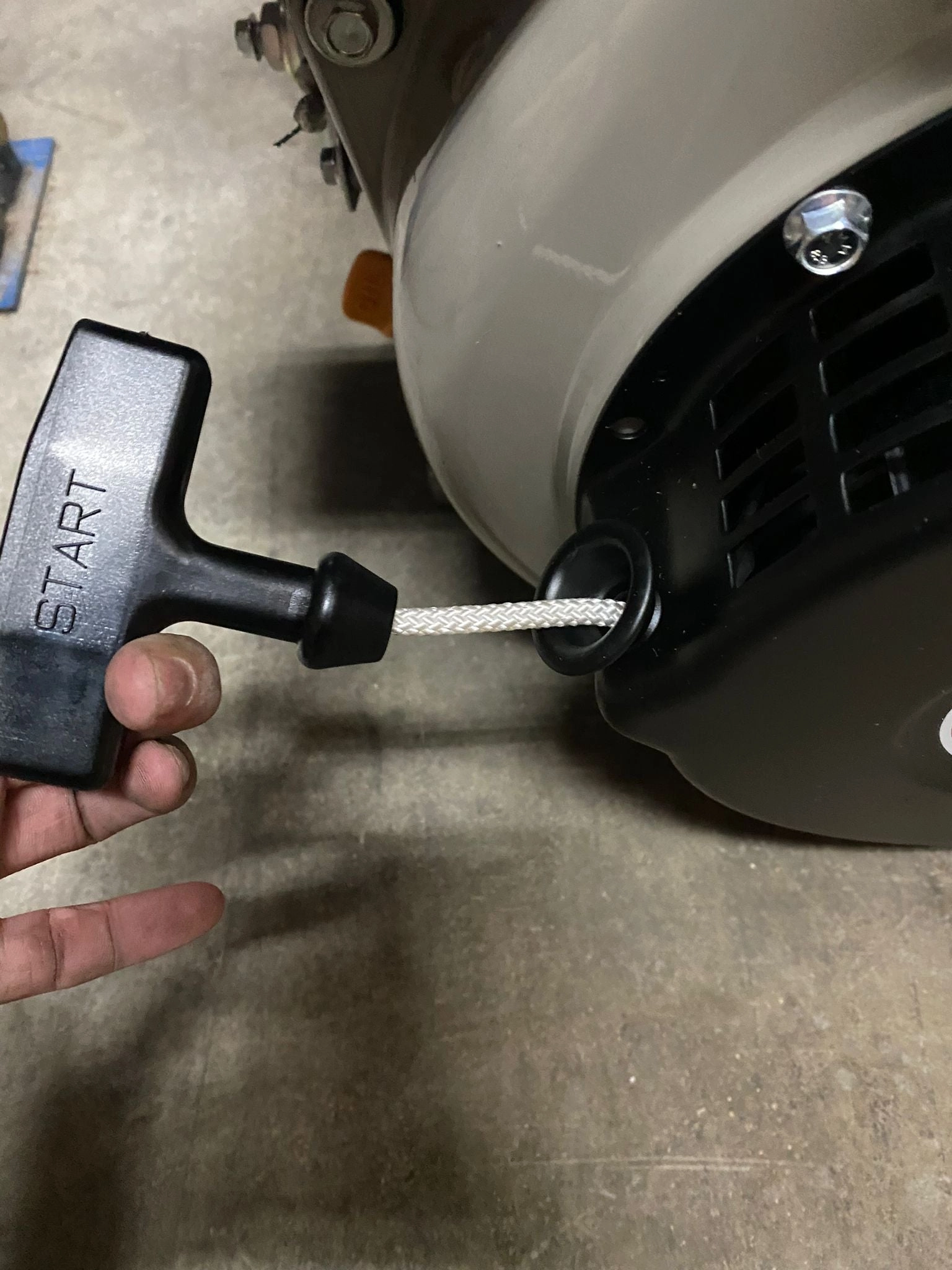

• Starting System : Electric Start / Recoil Start
• Dimension : 412 x 471 x 494 mm

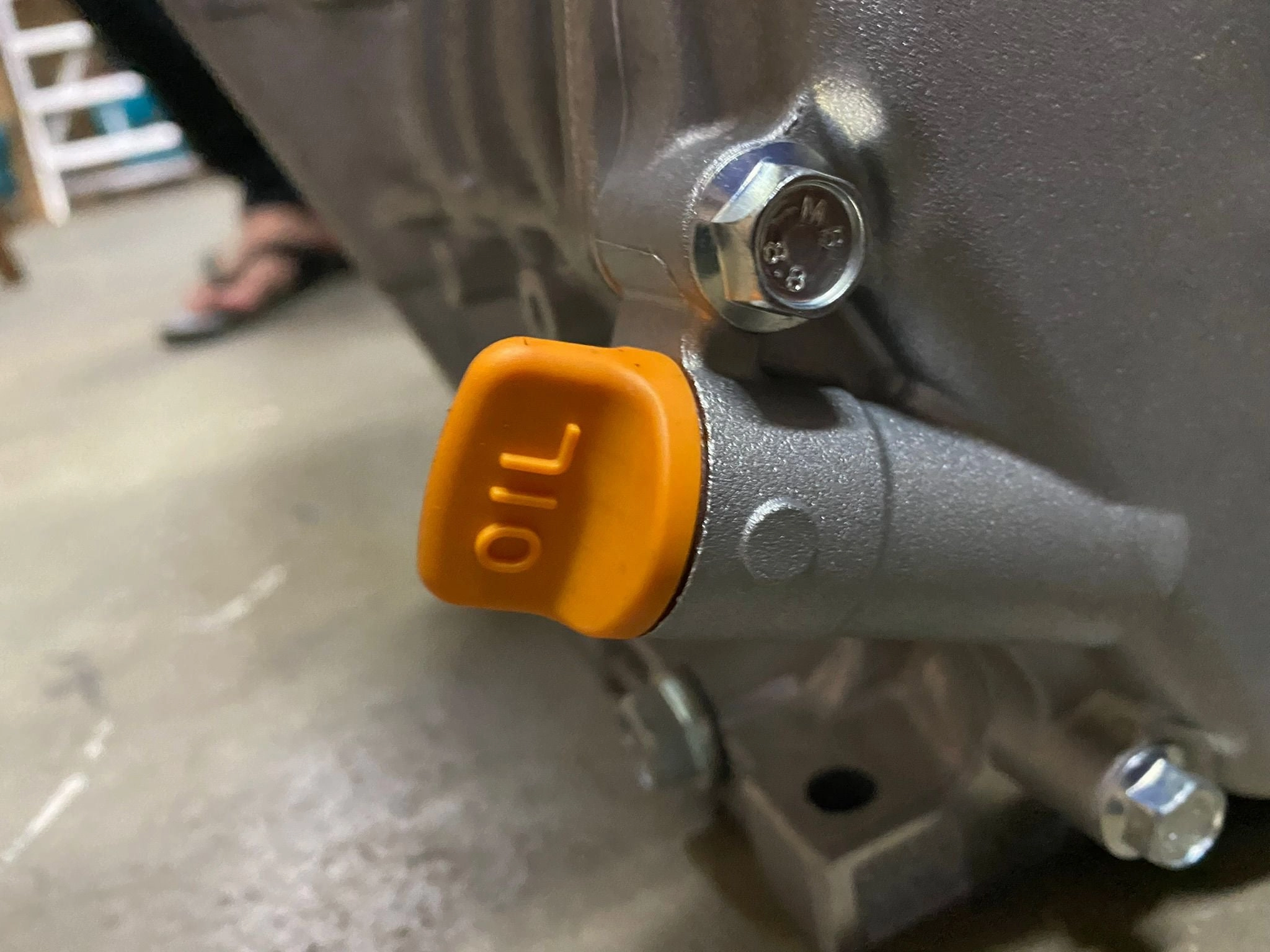

• Engine Oil Pan Capacity :
• Dipstick Upper Limit : 1.6L
• Dipstick Lower Limit : 1.0L
