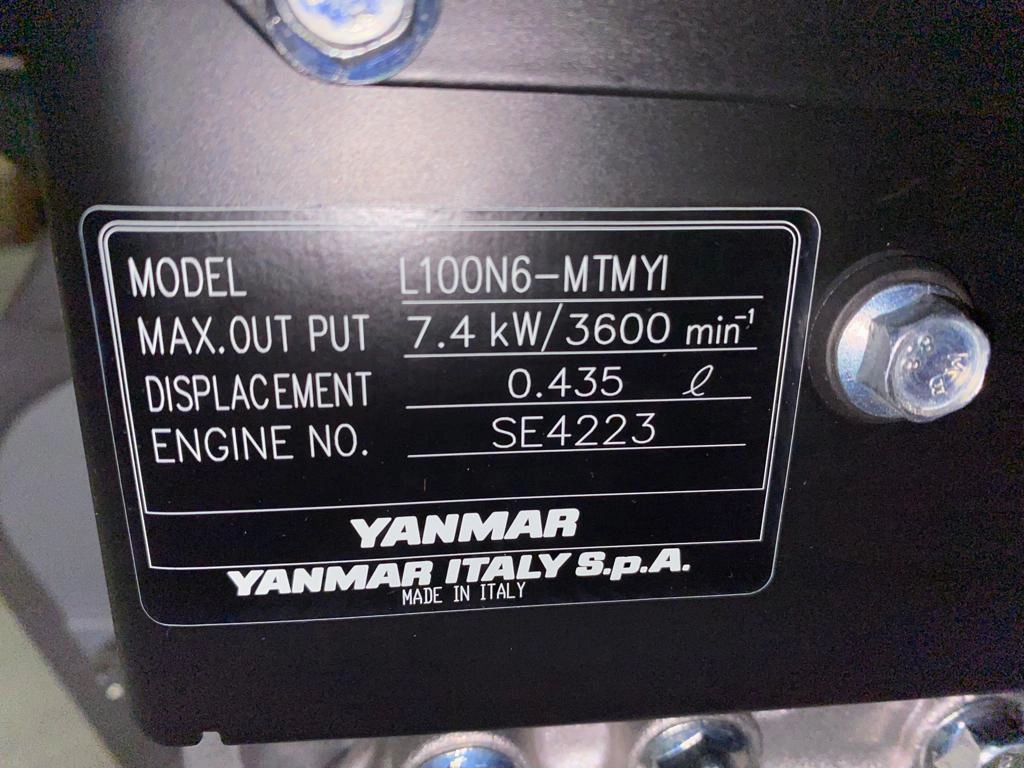

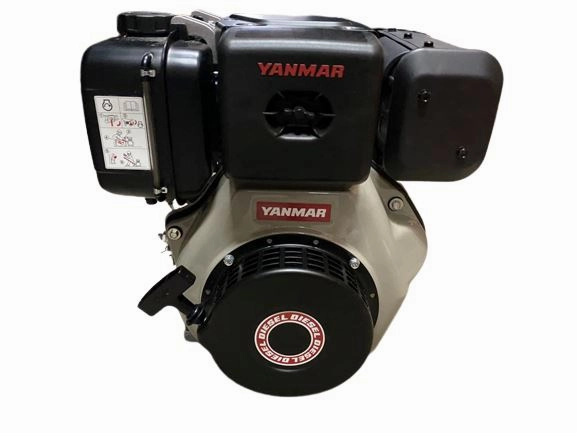

Yanmar Engine L100N (Manual) | Model : L100N6-MTM

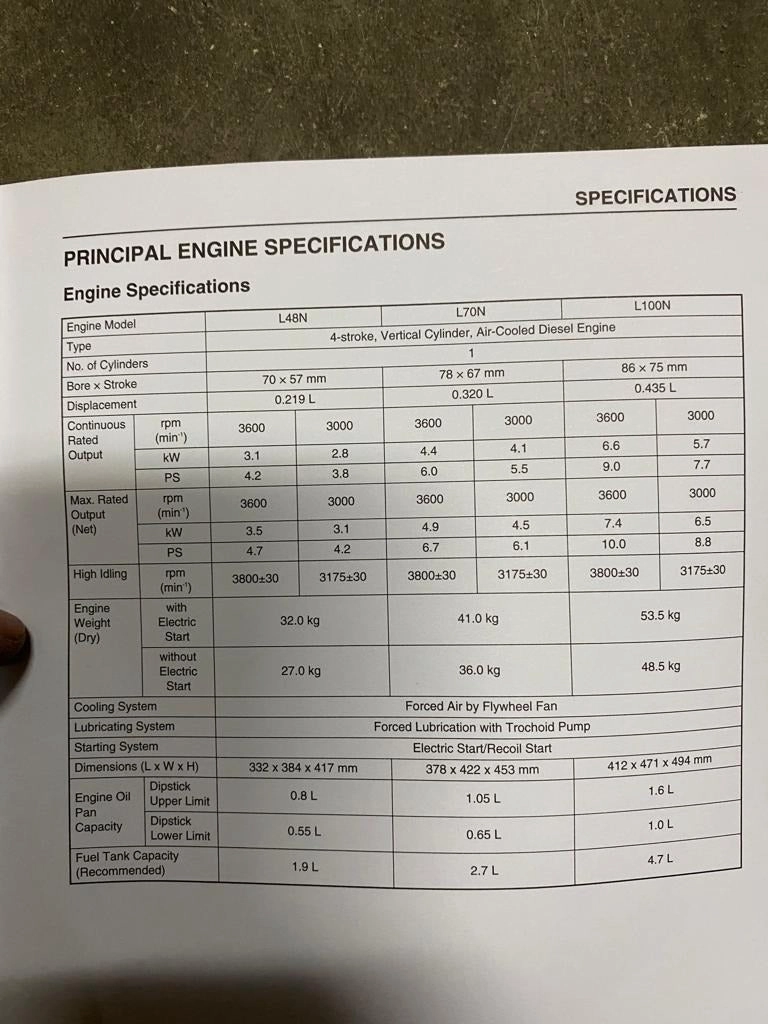

Specifications :

• Model : L100N
• Type : 4 Stroke , Vertical Cylinder , Air-Cooled Diesel Engine
• No. of Cylinders : 1
• Bore x Stroke : 86 x 75 mm
• Displacement : 0.435 L
• Continuous Rated Output :
• 3000 / 3600 rpm (min-1)
• 5.7 / 6.6 kW
• 7.7 / 9.0 Ps
• Max. Rated Output (Net) :
• 3000 / 3600 rpm (min-1)
• 6.5 / 7.4 kW
• 8.8 / 1.0 Ps
• High Idling :
• 3175 ±30 rpm (min-1)
• 3800 ±30 rpm (min-1)
• Engine Weight (Dry) :
• With Electric Start : 53.5 kg
• Without Electric Start : 48.5 kg
• Cooling System : Forced Air By Flywheel Fan
• Lubricating System : Force Lubrication With Trochoid Pump

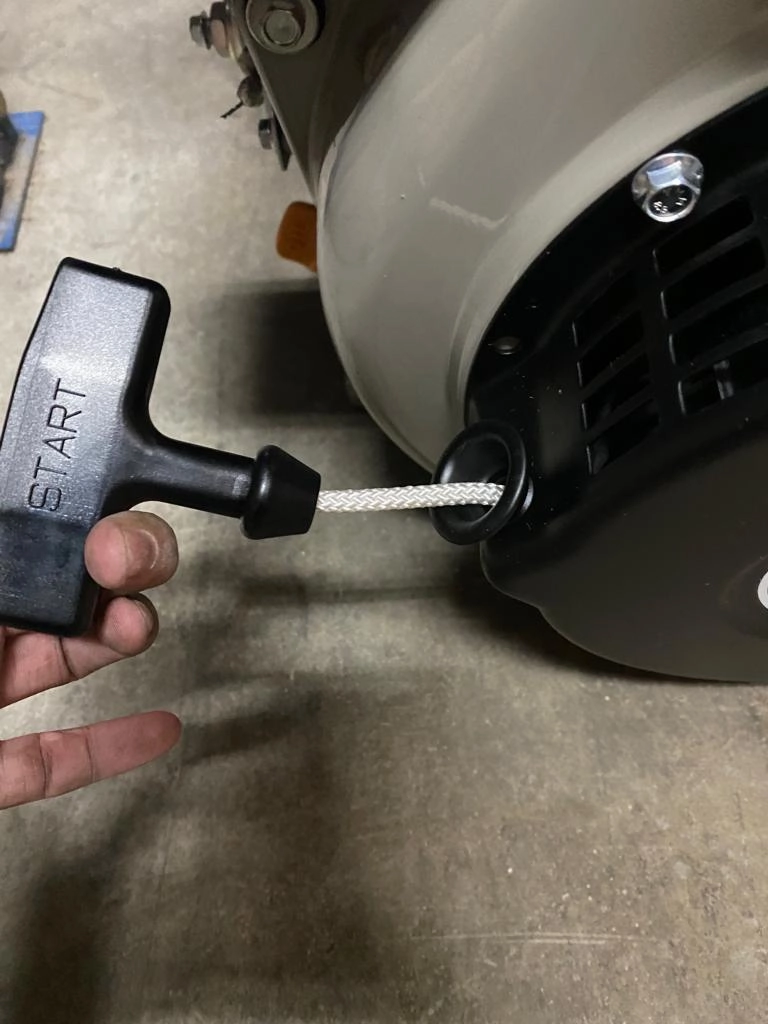

• Starting System : Electric Start / Recoil Start
• Dimension : 412 x 471 x 494 mm

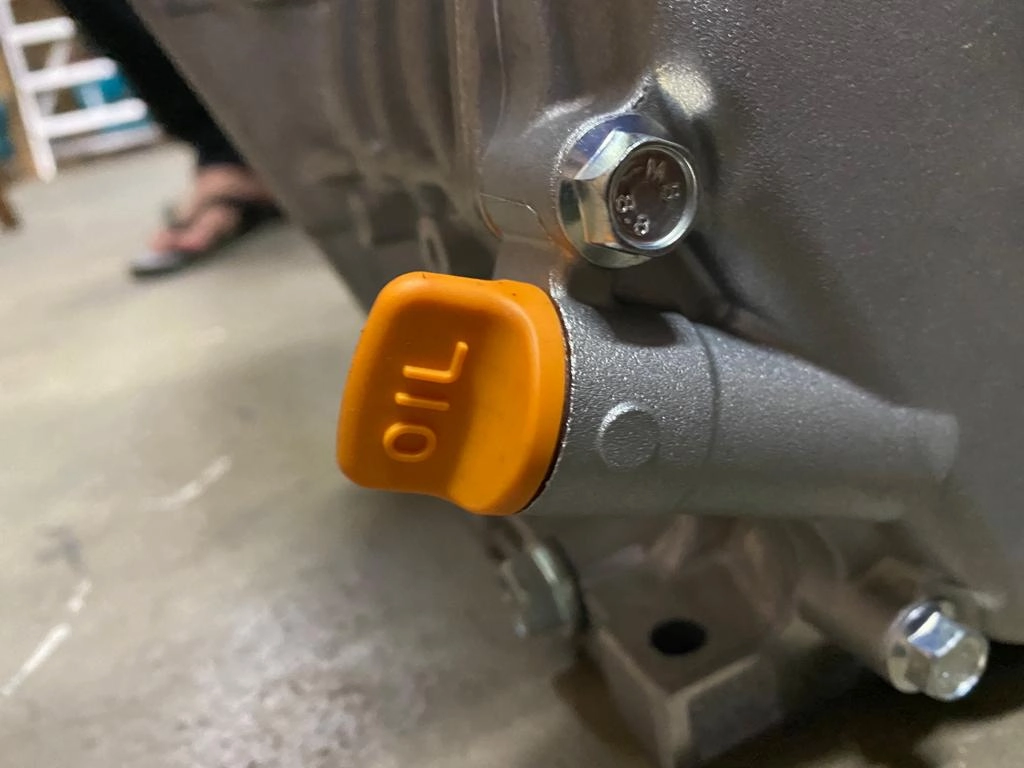

• Engine Oil Pan Capacity :
• Dipstick Upper Limit : 1.6L
• Dipstick Lower Limit : 1.0L

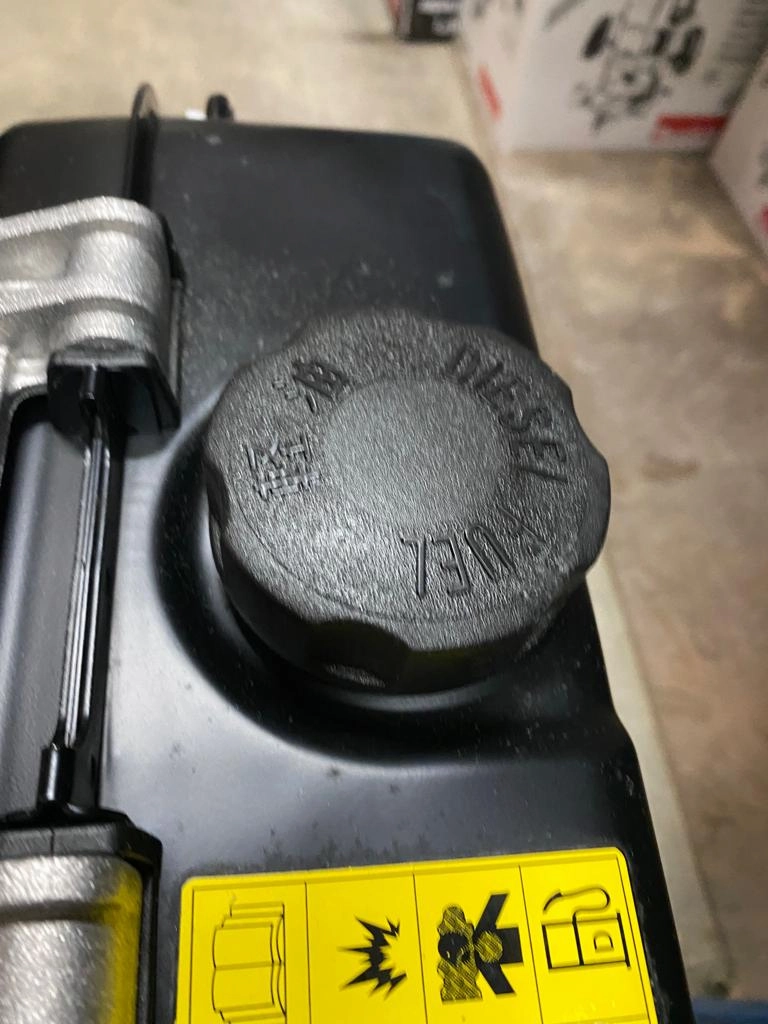

• Fuel Tank Capacity : 4.7 L
