Tropic Tamping Rammer TTR-90YDB Diesel W/ Yanmar Engine L48 | Model : TRM-TTR90YDB

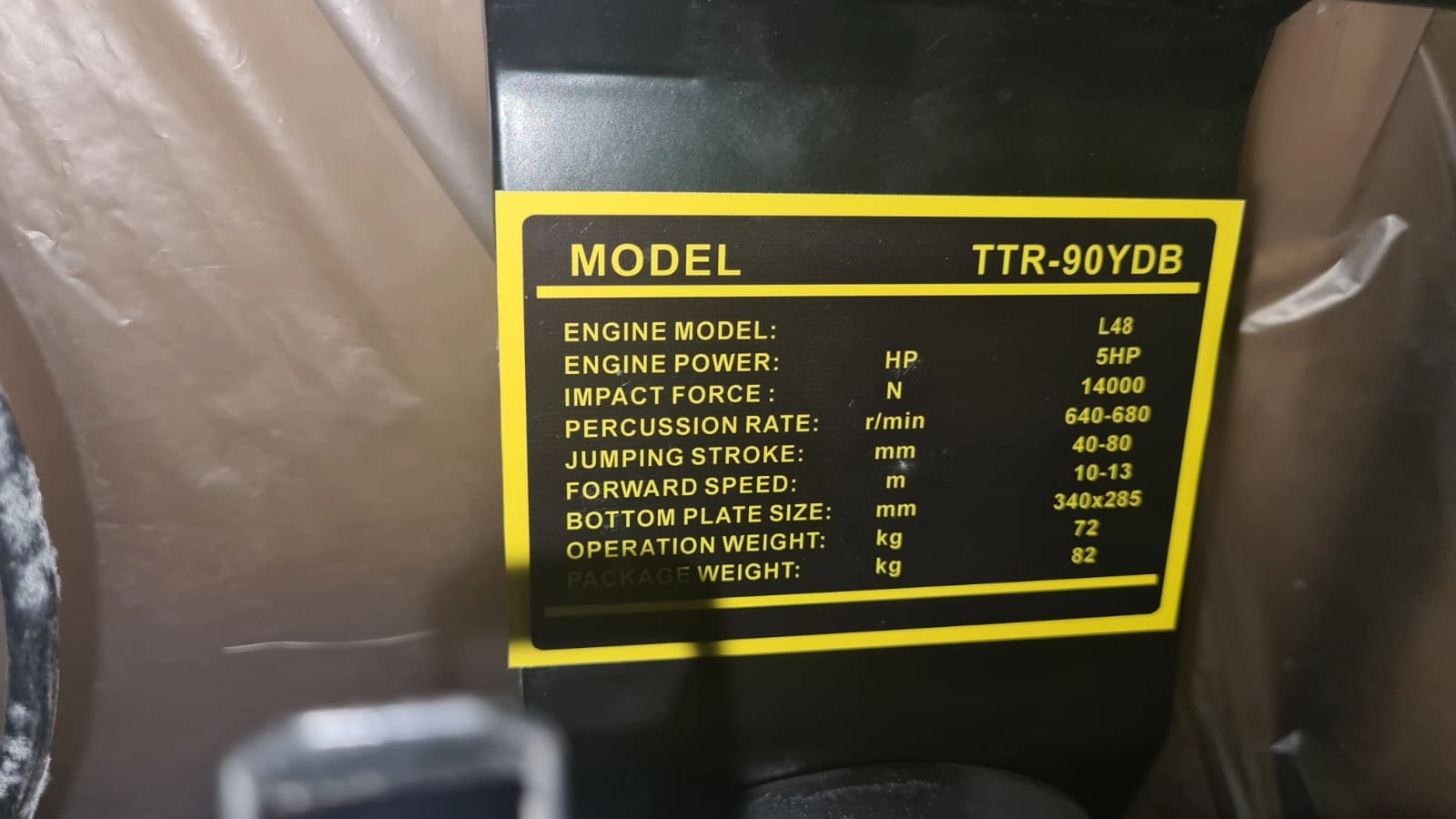

Specifications :

• Model : TTR-90YDB
• Engine Power : 5 Hp
• Impact force : 14,000 n
• Percussion rate :
• 640 - 680 r/min
• Jumping Stroke : 40 - 80 mm
• Forward speed : 10 -13 m
• Bottom plate : 340 x 285 mm
• Operation Weight : 72 kg
• Package Weight : 82 kg

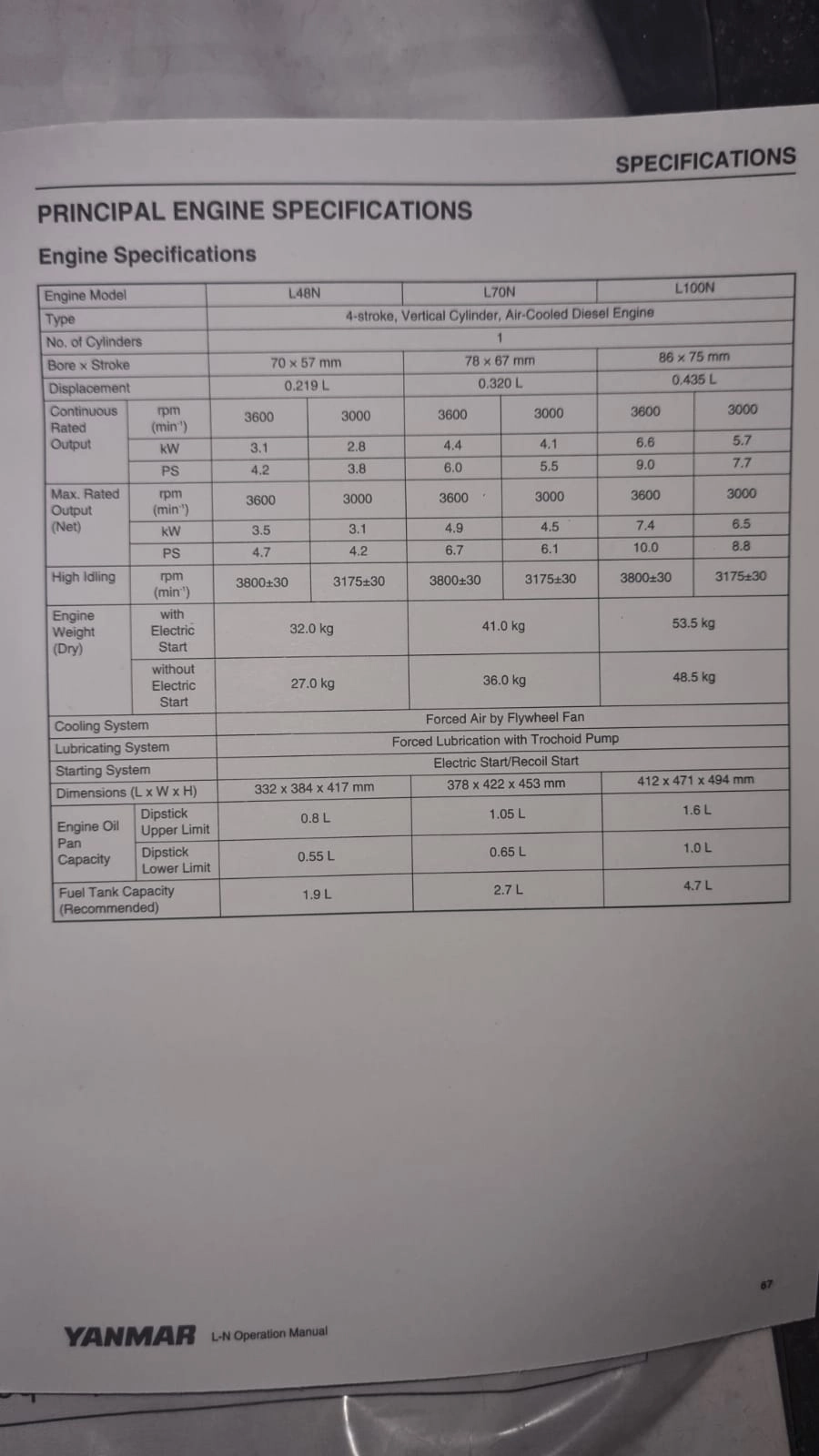

• Engine Model : L48
• Type : 4 stroke , vertical cylinder , air cooled diesel engine
• No. Cylinders : 70 x 57 mm
• Displacement : 0.219 L
• Continuous rate output :
• 3000 ~ 3600 rpm (min-1)
• 3.1 ~ 2.8 kW
• 4.2 ~ 3.8 Ps
• Max. rated output :
• 3000 ~ 3600 rpm (min-1)

• 3.5 ~ 3.1 kW

• 4.7 ~ 4.2 Ps
• High Ladling : 3175±30 ~ 3800±30 rpm (min-1)
• Engine Weight : 27.0 kg
• Cooling System : Forced Air by Flywheel fan
• Lubricating system : Forced Lubrication with Trochoid Pump
• Starting System : Recoil start
• Dimensions : 332 x 384 x 417 mm
• Engine oil pan capacity
• Dipstick Upper limit : 0.8 L
• Dipstick Lower limit : 0.55 L
• Fuel tank capacity : 1.9 L
