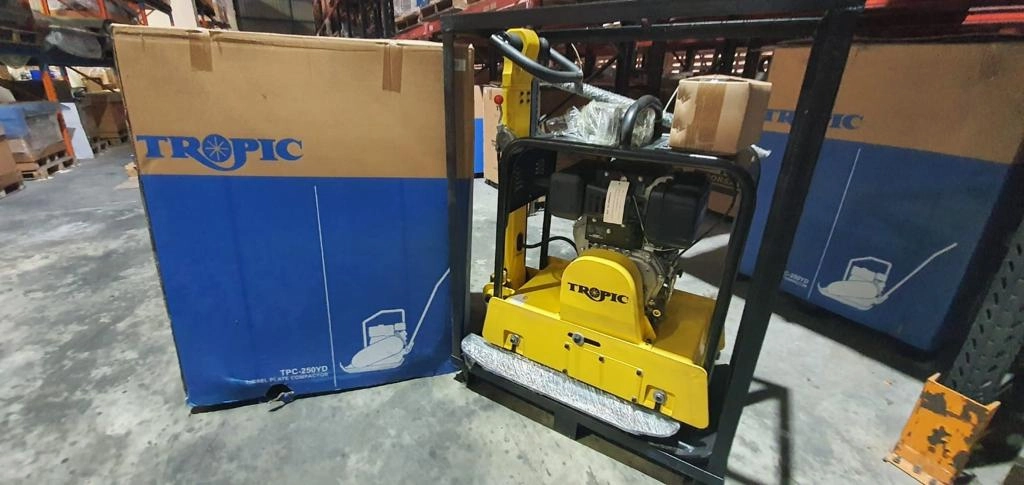

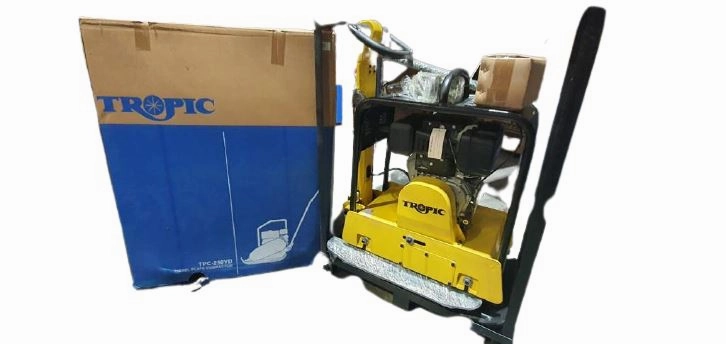

Tropic 5.0hp Diesel Plate Compactor W/ Yanmar Engine L48 | Model : T-TPC100YD

Specifications :

• Model : T-TPC100YD
• Power : 5.0 Hp
• Frequency : 90 Hz
• Centrifugal Force : 20 kn
• Compaction Depth : 40 cm
• Plate Size : 62 x 45 cm
• Dimension : 65 x 49 x 70 cm
• Weight : 100 kg

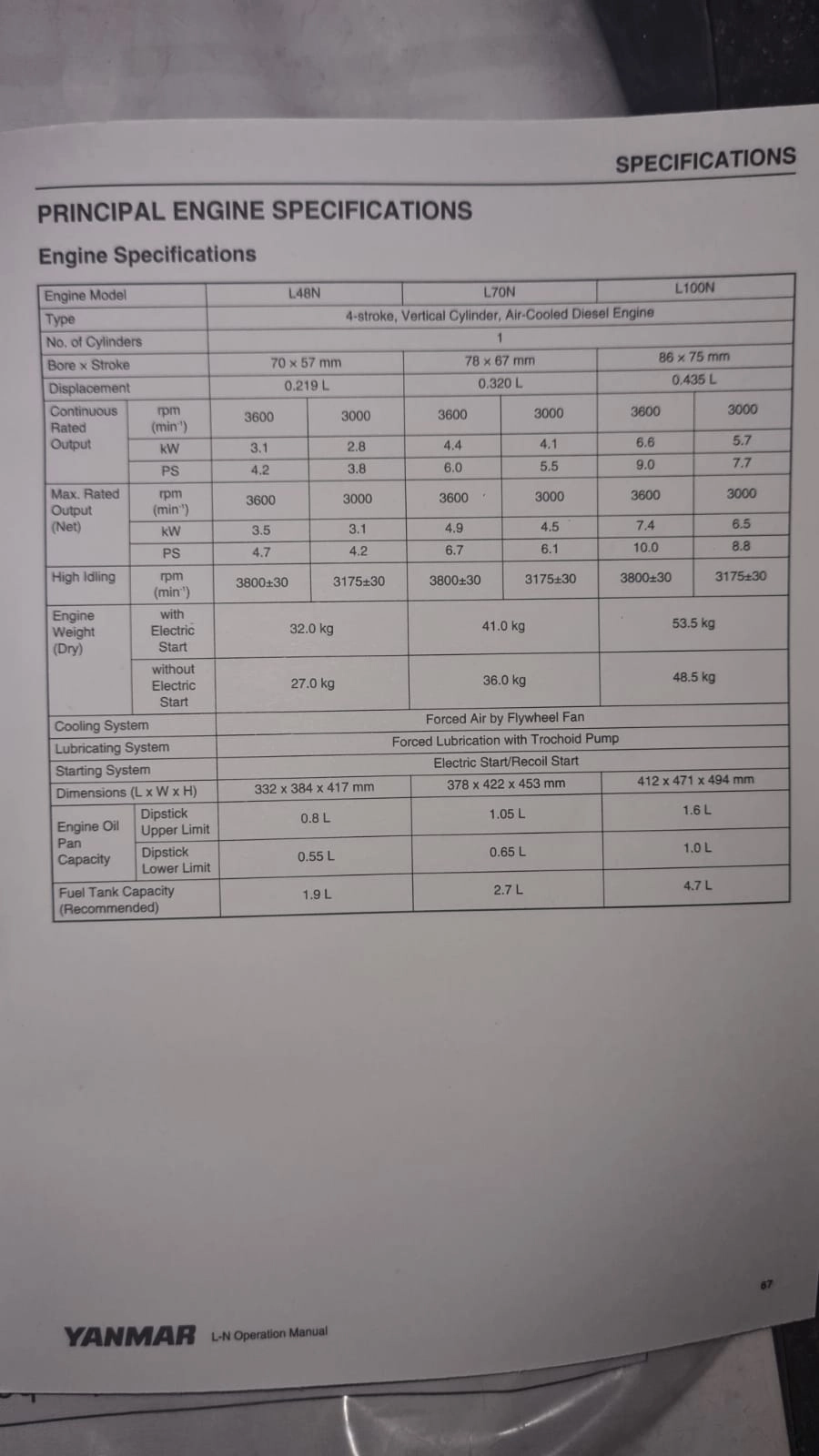

• Engine Model : L48

• Type : 4 stroke , vertical cylinder , air cooled diesel engine
• No. Cylinders : 70 x 57 mm
• Displacement : 0.219 L
• Continuous rate output :
• 3000 ~ 3600 rpm (min-1)
• 3.1 ~ 2.8 kW
• 4.2 ~ 3.8 Ps
• Max. rated output :
• 3000 ~ 3600 rpm (min-1)
• 3.5 ~ 3.1 kW
• 4.7 ~ 4.2 Ps
• High Ladling : 3175±30 ~ 3800±30 rpm (min-1)
• Engine Weight :
• With Electric Start : 32.0 kg
• Without Electric Start : 27.0 kg
• Cooling System : Forced Air by Flywheel fan
• Lubricating system : Forced Lubrication with Trochoid Pump
• Starting System : Electric start/Recoil start
• Dimensions : 332 x 384 x 417 mm
• Engine oil pan capacity
• Dipstick Upper limit : 0.8 L
• Dipstick Lower limit : 0.55 L
• Fuel tank capacity : 1.9 L
