World Cup proven, specifically designed for the DH and Trail segments with better end stroke control and improved adjustment range

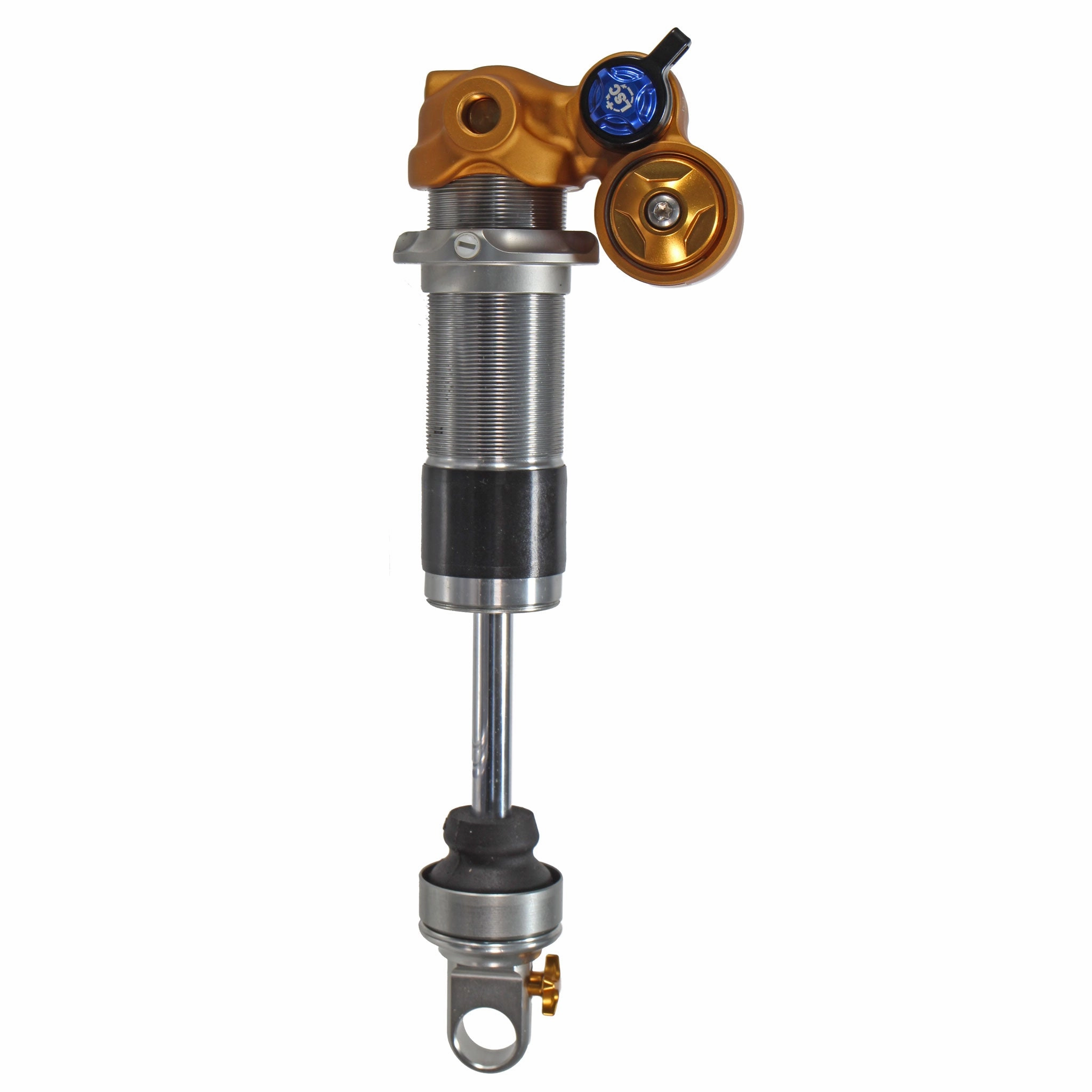

Trunnion mount: the linkage bolts directly to the sides of the cylinder head
Improved bottom out performance, courtesy of a newly designed bump rubber
Possible to simply adjust stroke with the three 2.5 mm spacers included in the box
External 3 level high-speed compression adjustment
External 16 click low-speed compression adjustment
External 7 click rebound adjustment
Stability mode to reduce suspension movement during less technical climbs
Suitable for the lightweight springs
Mounting hardware sold separately, end eyes are 15mm
486g| model | TTX22M.2 Coil |
| stroke | 67.5/70/72.5/75mm |
| eye-eye | 225mm (trunnion) |
