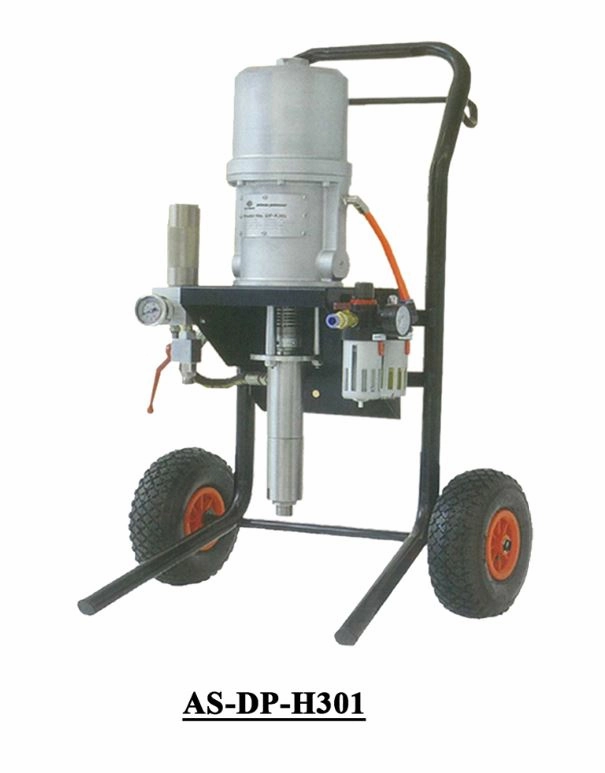

Dino-Power Pneumatic Heavy Duty Paint Sprayer (Must Use with Air Compressor) | Model: DP-H301  | Model : AS-DP-H301

Specifications :

• For big volume spraying (eg: shipyard), must have air to run.
• Fluid Pressure Ratio : 32: 1
• Max. Paint Delivery : 12 L/Min (3.17 GPM)
• Cylinder Diameter : 250 MM
• Max. Pump Speed : 100 Cycles/Min
• Stroke (MM) : 100
• App.Air Consumption At 6 Bar : 400-800 L/Min
• Air Compressor Pressure : 5-8 Bar
• Max.Discharge : 256 Bar
• Air Inlet & Fluid Outlet (Inch) : 3/8
•
