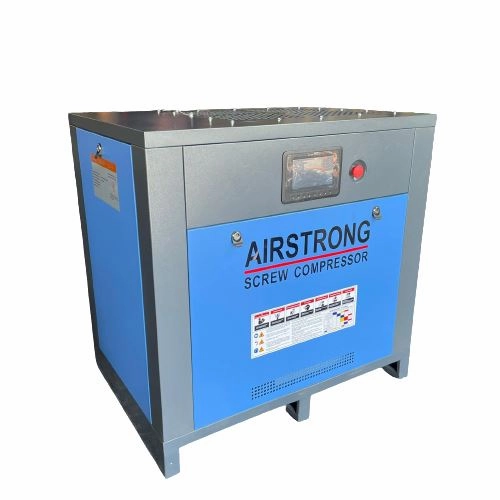

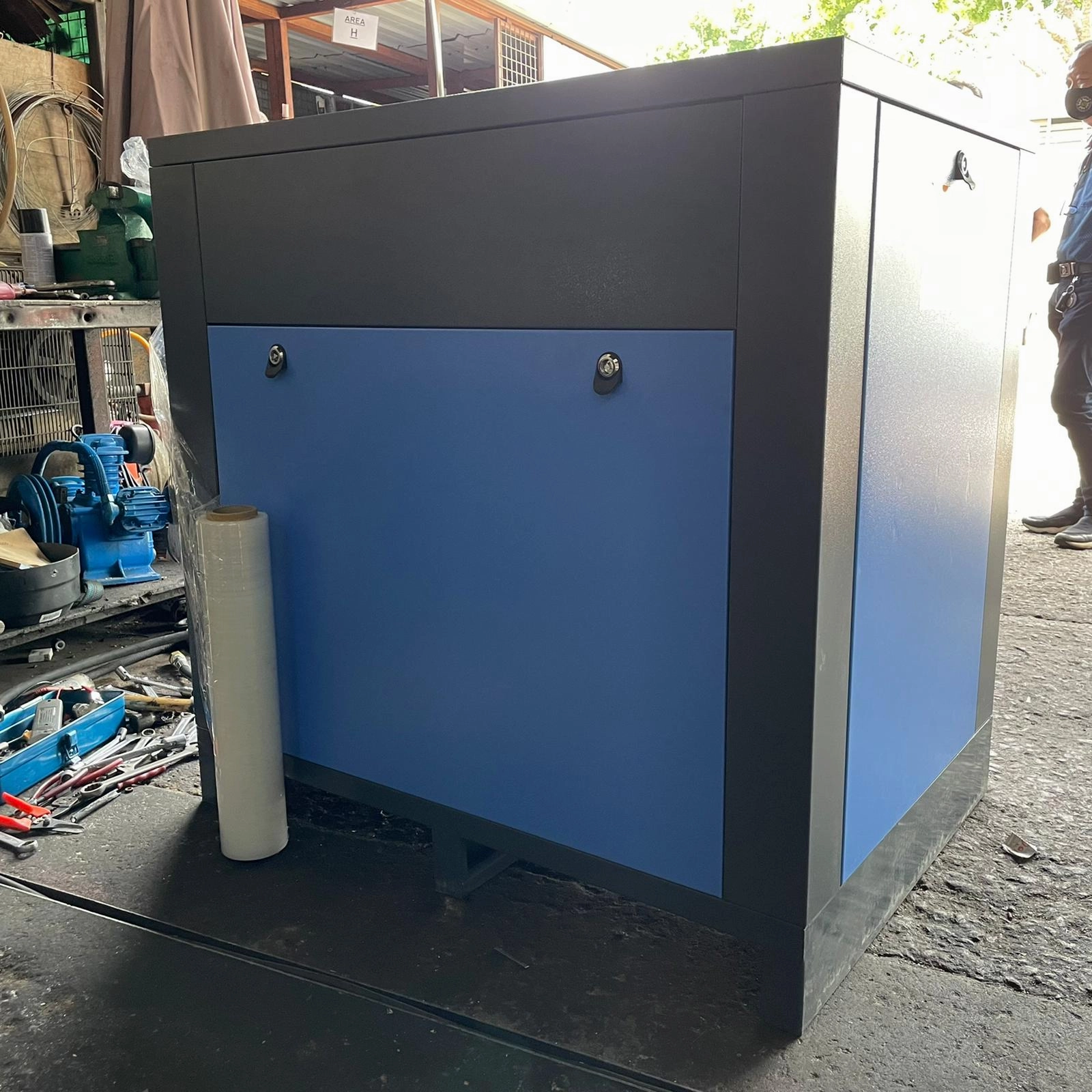

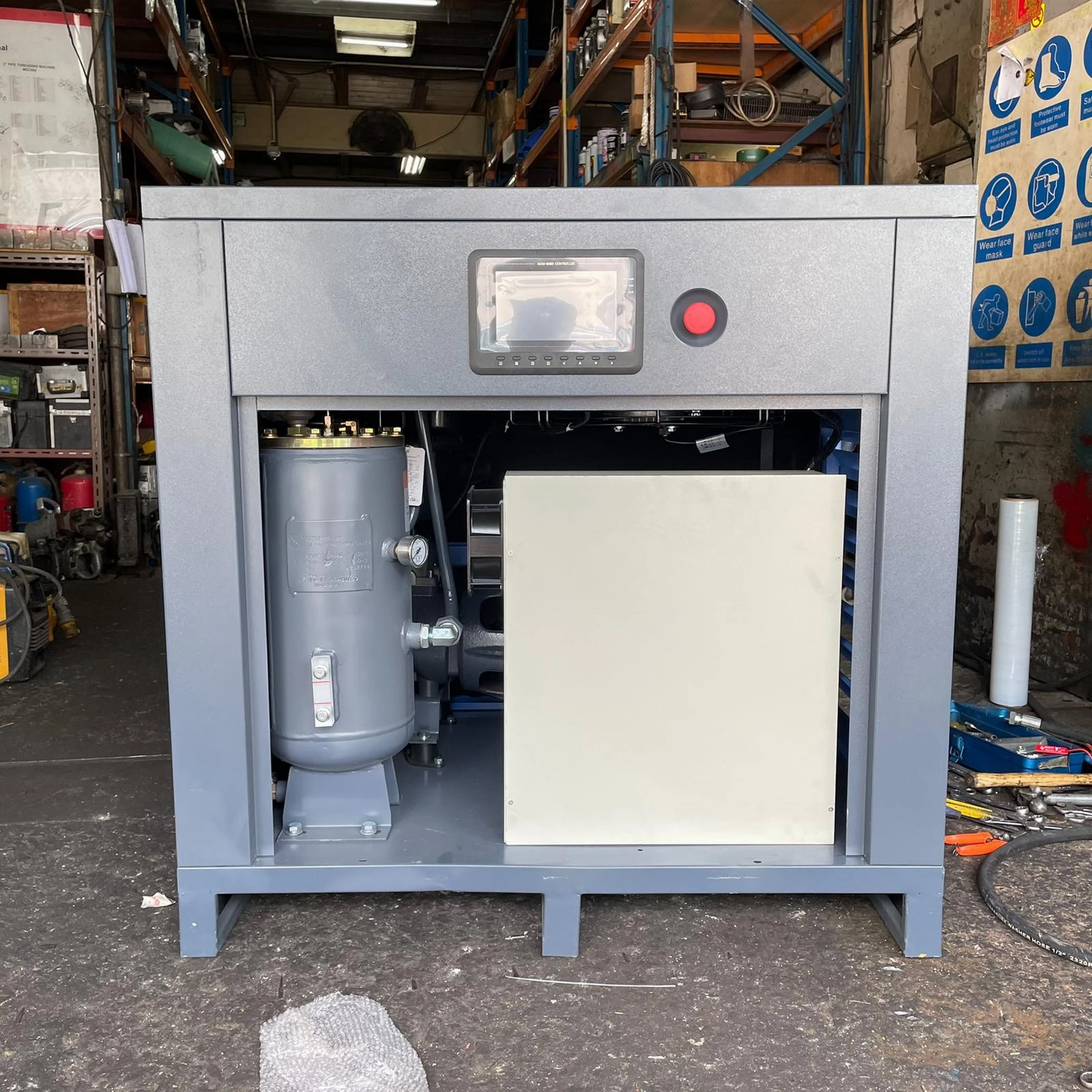

Airstrong ASPM30HP Rotary Inverter Screw Air Compressor with 415V, 30Hp, 10 Bar | Model : ASPM30HP

Email us or Call us at 6483 5888 to request for quote

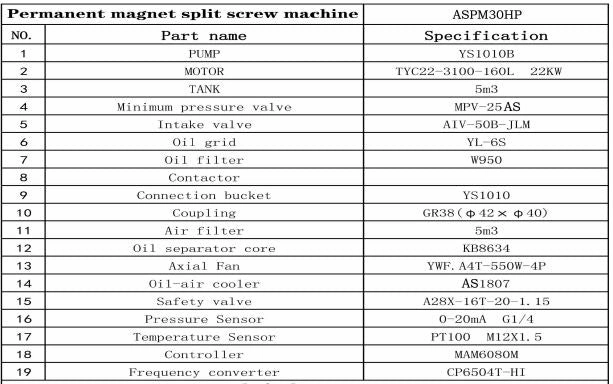

Specifications :

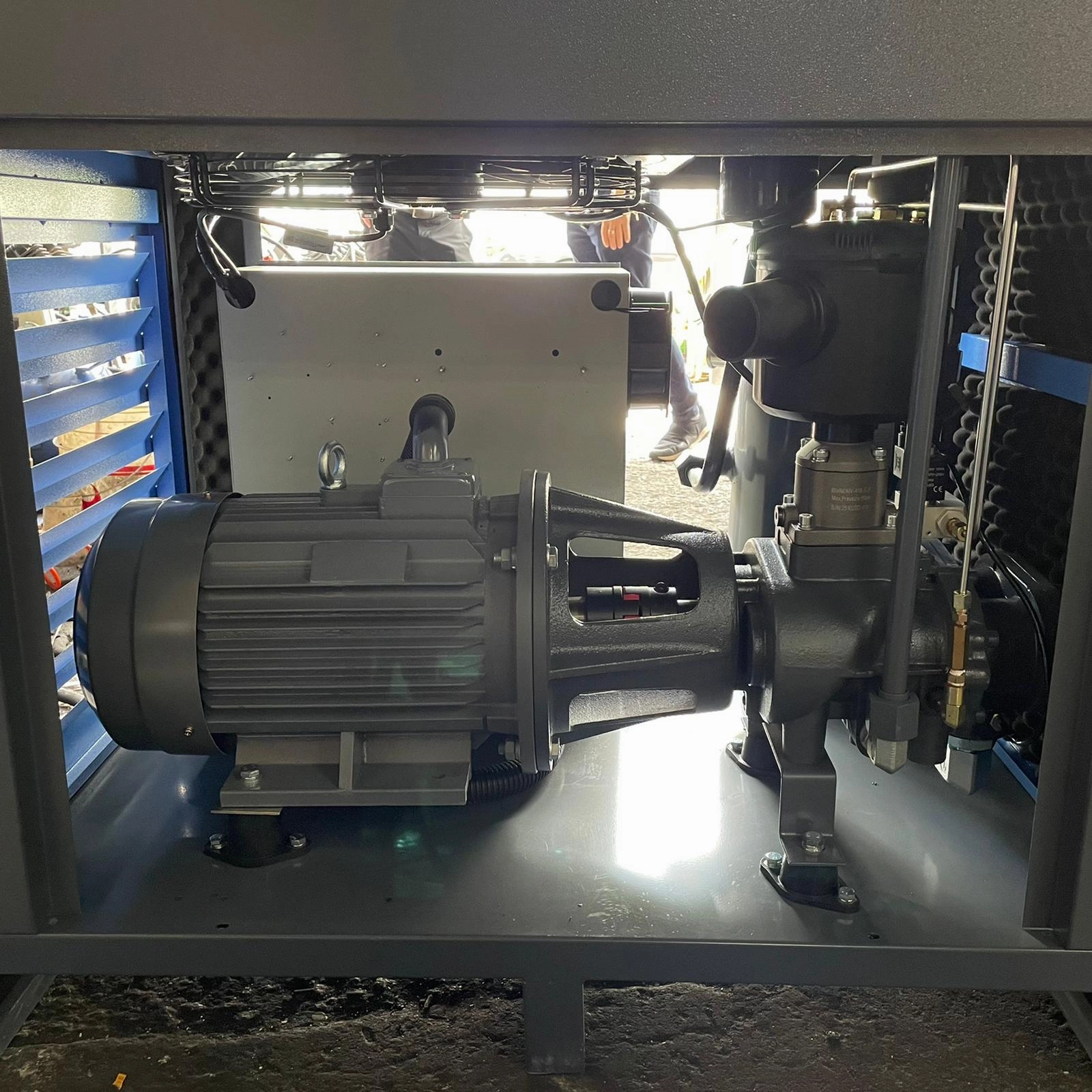

• Permanent Magnet Split Screw Machine
• Model : ASPM30HP
• Pump : YS1010B

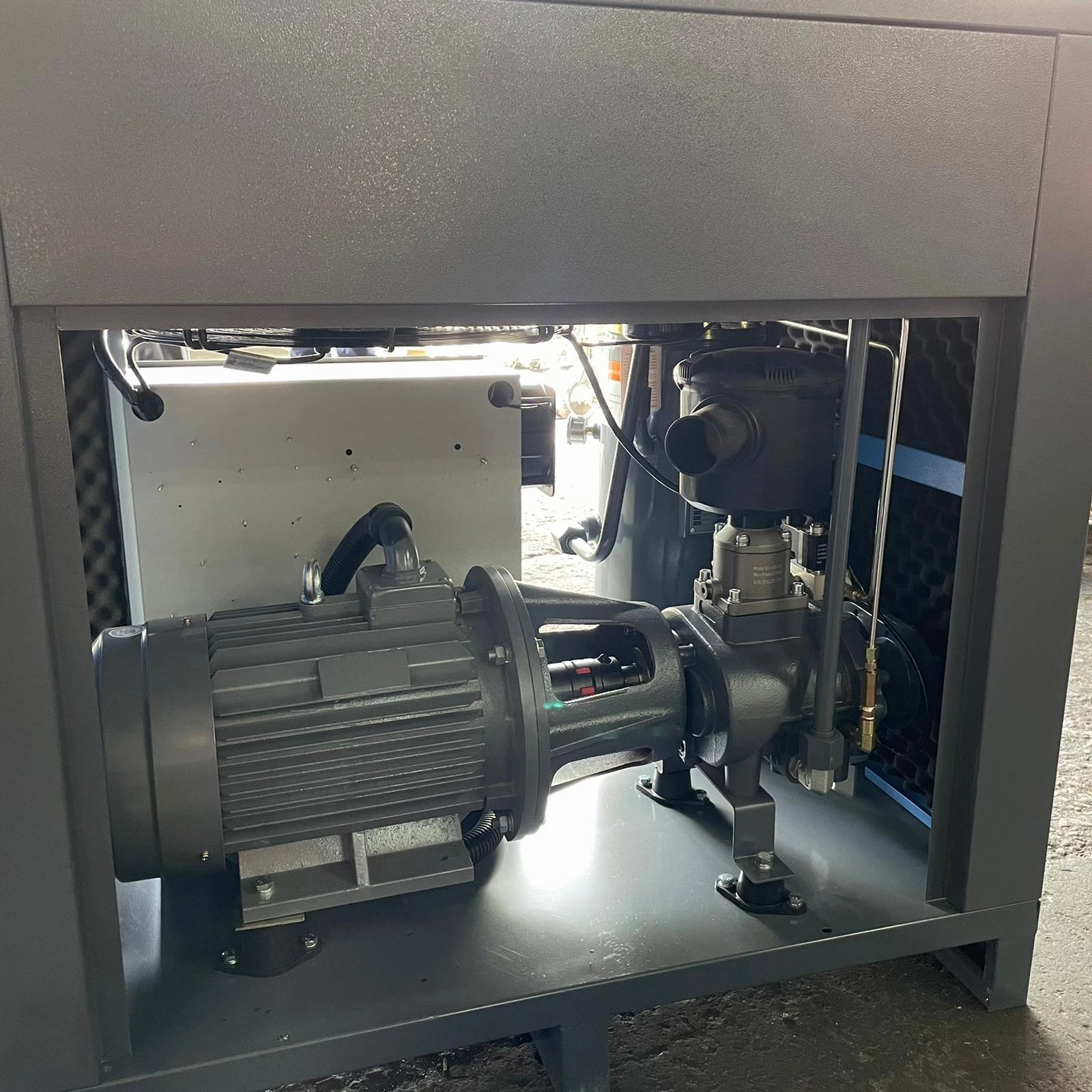

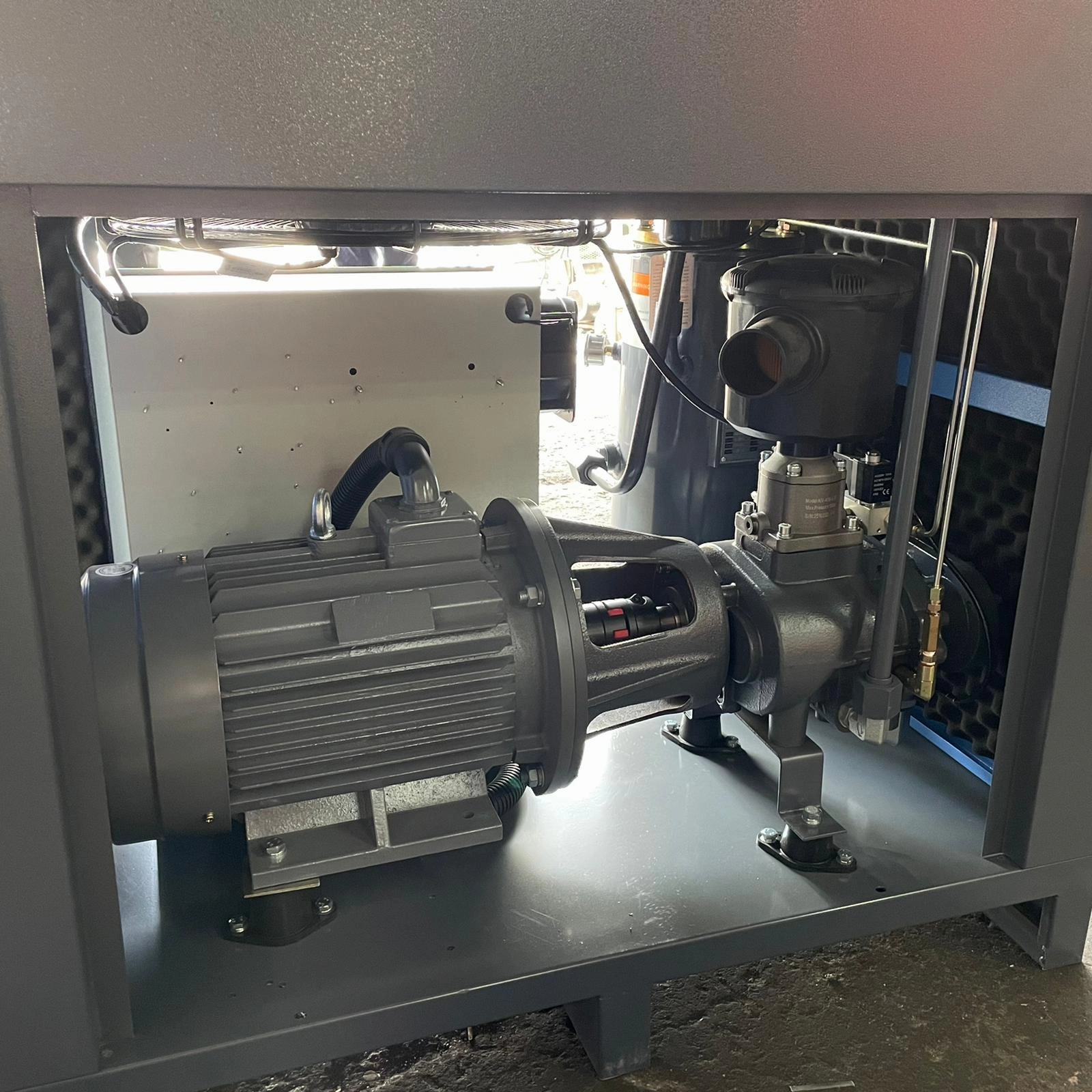

• Motor : TYC22 - 3100 - 160 L , 22 Kw
• Tank : 5m3
• Minimum Pressure Valve : MPV-25AS

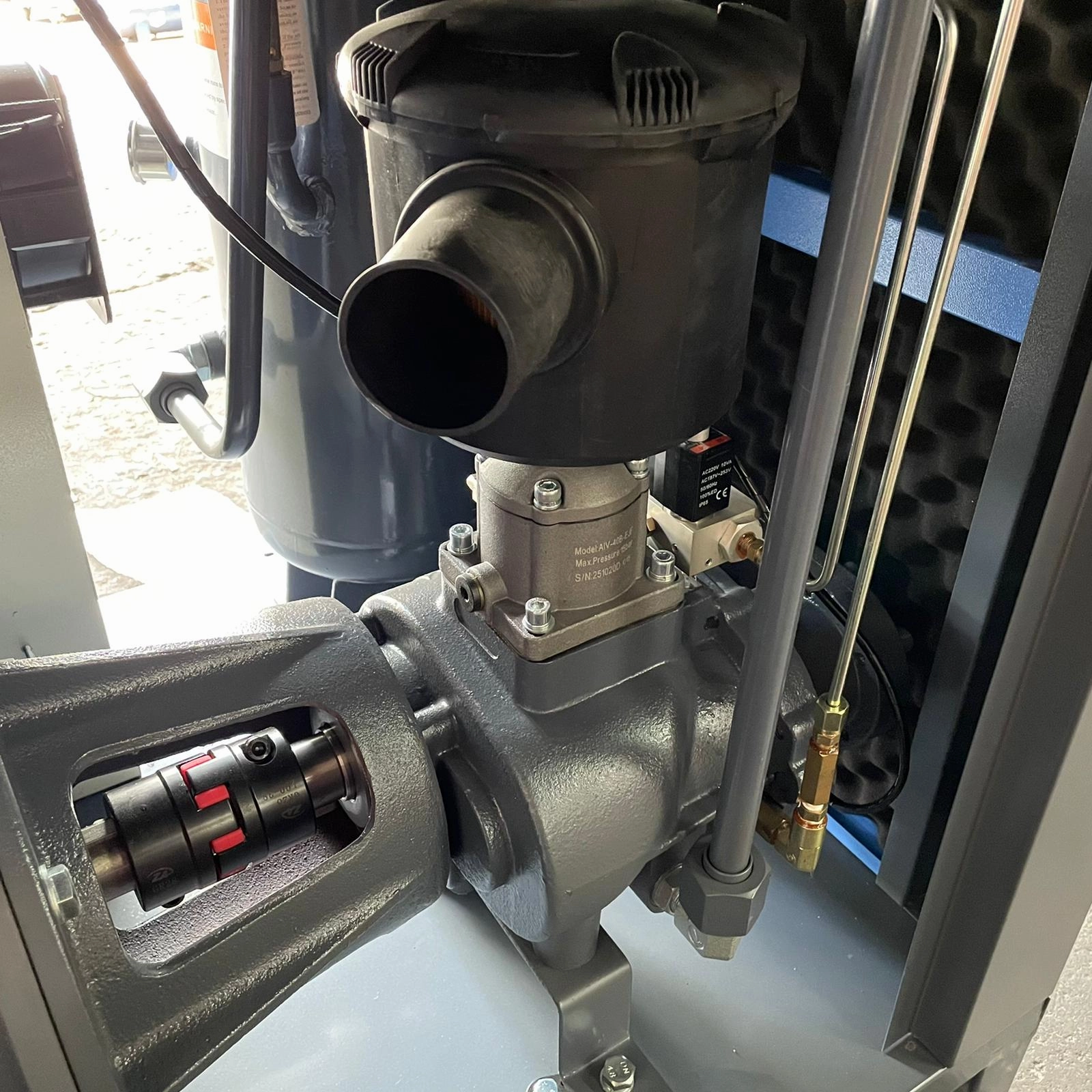

• Intake Valve : AIV-50B-JLM
• Oil Grid : YL-6S
• Oil Filter : W950
• Contractor
• Connection Bucket : YS1010S
• Coupling : GR38 (Φ42 X Φ42)
• Air Filter : 5 m3
• Oil Separator core : KB8634
• Axial Fan : YWF. A4T-550W-4P
• Oil - Air Cooler : AS1807
• Safety Valve : A28X - 16T - 20 - 1.15
• Pressure Sensor : 0-20 mA , G1/4
• Temperature Sensor : PT100 , M12X1.5
• Controller : MAM6080M
• Frequency Converter : CP6504T-HI

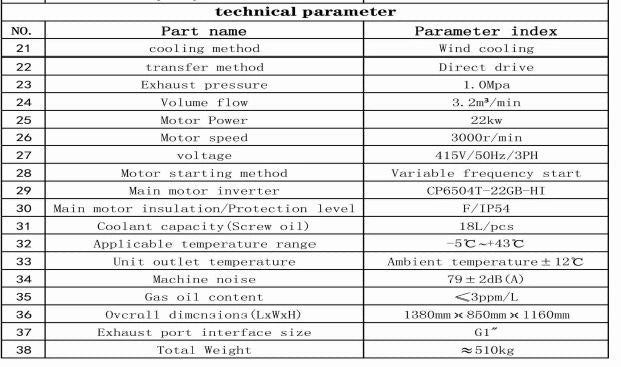

• Technical Parameter
• Part Name : Parameter Index
• Cooling Method : Wind Cooling
• Transfer Method : Direct Drive
• Exhaust Pressure : 1.0 Mpn
• Volume Flow : 3.2 m"/min
• Motor Power : 22 kw
• Motor Speed : 3000r/min
• Voltage : 415 V / 50 Hz / 3 PH
• Motor Starting Method : Variable Frequency Start
• Main Motor Inverter : CP6504T - 22GB - HI
• Main Motor insulation/Protection Level : F / IP54
• Coolant Capacity : 18L/pcs (Screw Oil)
• Applicable Temperature Range : -5°C ~ 43°C
• Unit Outlet Temperature : Ambient Temperature
• Machine Noise : 79 ± 2dB (A)
• Gas Oil Content : <3ppm / L
• Overall Dimensions : 1380 x 850 x 1160 mm
• Exhaust Port Interface Size : G1"
• Total Weight : ~~ 510 kg
