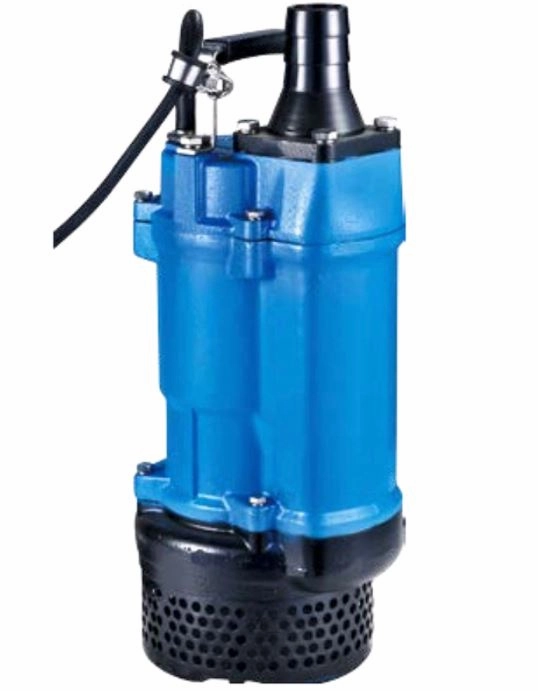

Aiko 2" 5Hp 3.7Kw 415V Submersible Drainage Pump | Model : KBZ23.7

Features :

• The body of motor and pump is made of rigid cast iron for long lasting durability.

• Greatly increase maximum submersion depth due to mechanical seal resistant to high pressure.

• Semi-open impeller made of high chrome alloy match with wear plate (ductile iron) achieves superior durability.

• Effective motor cooling due to discharge channel cast as part of the motor housing.

• Hermetically sealed motor equipped build-in thermal protection for the power below 15 kW.

Specifications :

• Model : KBZ23.7
• Power : 5 Hp
• Maximum Capacity : 580 L/min
• Maximum Head : 34.5 m
• Discharge Size : 2" (50 mm)
• Impeller passage : 8.5 mm
• Packaging Dimension : 685 x 325 x 300 mm
• Packaging Weight : 65 Kg
• Pump Dimension  : 638 x 283 x 252 mm
• Pump Weight : 60 kg
